270° Awning

270° Awning

$2,550.00

Designed, Sourced, and Built in the USA

  • Estimated Lead Time: 1-2 Months

  • Includes Mounting Brackets and Hardware specific to application.

  • Five Year Warranty

  • Scroll down for detailed information.

Driver or Passenger Side?:
Mount Kit (Please read descriptions at bottom of this page 1st):
Add To Cart

Features

Designed, Sourced, and Built in the U.S.A.
• Rapid deployment and storage
Sunbrella® marine fabric canopy with sealed seams (9.25 oz/yard or 314 g/meter) cut and sewn in-house
• 18oz Vinyl Coated Polyester Cover with flexible YKK zipper cut and sewn in-house
• Industrial stainless spring pin for auto-locking open. The first and only 270 with this feature.
• Three pop up arms for optimal water shedding, minimal pooling, and no ponding
• Guyline attachment webbing loops on canopy perimeter for high wind stability
• Stainless and brass hardware with poly bushings in main hinge
• Semi-gloss black powder coated steel tube truss frame for maximum strength and reduced weight
• Perimeter Hook/loop trim and snaps for future accessories (walls, enclosures, lights, etc...)
• Arms accept most aftermarket poles for additional support in high wind, snow, or hammocking

HD Stainless Steel Spring Pin

HD Stainless Steel Spring Pin

Guyline webbing attachment points centered on each side of tarp perimeter to eliminate flapping in high wind

Guyline webbing attachment points centered on each side of tarp perimeter to eliminate flapping in high wind

Arm hole for aftermarket poles (Springbar® pole shown)

Arm hole for aftermarket poles (Springbar® pole shown)

Seams are sealed with black seam tape, no need to season

Seams are sealed with black seam tape, no need to season

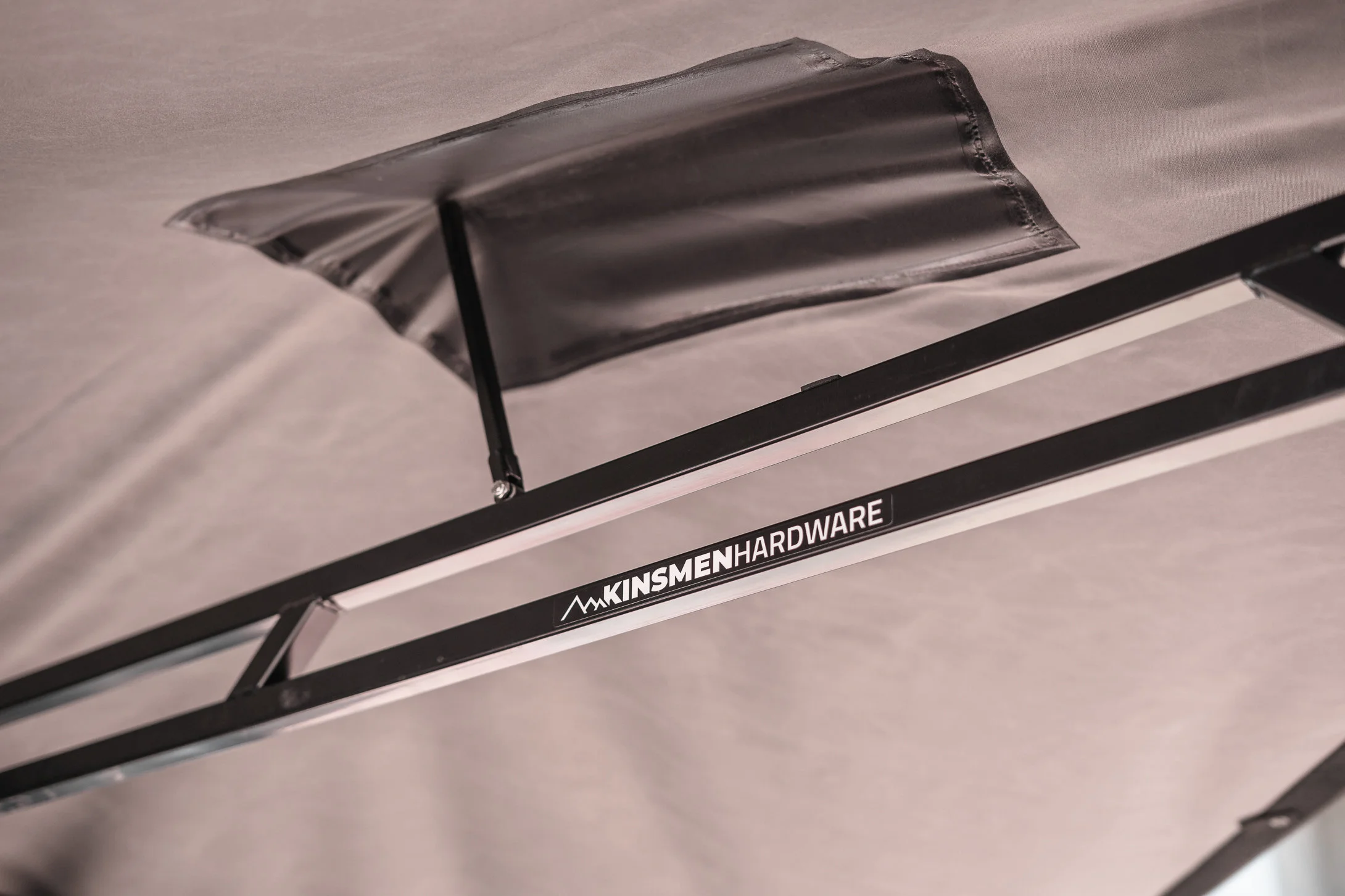

Pop-up Arms on the three main arms; Tarp reinforcement with seam tape

Pop-up Arms on the three main arms; Tarp reinforcement with seam tape

Perimeter Mil-Spec Hook/Loop trim with brass snaps for accessories

Perimeter Mil-Spec Hook/Loop trim with brass snaps for accessories

Sunbrella® Marine tarp is water repellent from the factory

Sunbrella® Marine tarp is water repellent from the factory

Reinforced corners where tarp mounts to frame

Reinforced corners where tarp mounts to frame

Dimensions:
Open: 152"L x 120" W
Closed: 91"L x 7”W x 7”H
Weight: 70 lbs
Area: ~85 Sqft

Open Dimensional Drawing

Open Dimensional Drawing

Rear Mounting Dimensional Drawing

Rear Mounting Dimensional Drawing

Recommended Weather Use for Awning only. Use care depending on what your awning is mounted to.

Recommended Weather Use for Awning only. Use care depending on what your awning is mounted to.

Warranty:
5 years

This warranty only includes manufacturing or shipping defects. If you have any issues with one of our products, email info@kinsmenhardware.com and we’ll take care of it.

Included Mounting Bracket Options:

Go Fast V2 Camper & Platform Rooftop Tent: Mounts to Camper and Platform RTT using GFC T-nuts; all hardware included; RTT must have 2 inches of clearance below rear corner; Yes, you can access and unlock the GFC latch lock behind the mounts but clearance is tight. Does not fit Topper.
Go Fast V2 Topper in development
Go Fast V1 Camper and Platform Rooftop Tent with Steel Latch Bar and Poly Hinges: Mounts to Camper and RTT using GFC sourced T-nuts; all hardware included
Go Fast V1 Camper with Steel Latch Bar and Embassy Hinges: Mounts to Camper using GFC sourced T-nuts; all hardware included
Go Fast V1 Camper and Platform Rooftop Tent with Aluminum Latch Bar and Poly Hinges: Mounts to Camper or RTT using GFC sourced T-nuts; all hardware included
Go Fast V1 Camper with Aluminum Latch Bar and Embassy Hinges: Mounts to Camper using GFC sourced T-nuts; all hardware included
Super Pacific Switchback X1 Camper: In Development. Submit your email address to be notified when pre-orders are available. If you own one of these and live near South Carolina, please email me.
Prinsu/Sherpa/Bowfin 80/20 Style Racks: Designed to fit most 80/20 style roof racks with vertical side plates. Installs without drilling; all hardware included. If platform is mounted to a fiberglass shell/topper/camper, we recommend the shell be the HD/reinforced version Due to the vast amount of variations in these style racks and vehicles, we cannot guarantee fitment. Please email a few pictures of your roof rack to confirm fitment.
Front Runner Slimline II: Installs without drilling; all hardware included. Not compatible with top expedition rail (basket) kits. If platform is mounted to a fiberglass shell/topper/camper, we recommend the shell be the HD/reinforced version
Rhino Rack Pioneer Platform V2: New Pioneer Platform Rack post 2020ish. Installs without drilling; all hardware included. Not compatible with top rail (basket) kits. Mounting Legs (towers connecting platform to vehicle) must be within 8” of the rear corner and side edges of the platform. If platform is mounted to a fiberglass shell/topper/camper, we recommend the shell be the HD/reinforced version
Rhino Rack Pioneer Platform V1: Old Pioneer Platform rack pre 2020ish. Installs without drilling; all hardware included. Not compatible with top rail (basket) kits. Mounting Legs (towers connecting platform to vehicle) must be within 8” of the rear corner and side edges of the platform. If platform is mounted to a fiberglass shell/topper/camper, we recommend the shell be the HD/reinforced version
1” Round Tube (Baja Exp or Utility Flat): Installs without drilling; all hardware included; not compatible with rear light mount brackets; ladders must be on the opposite side of vehicle from awning; not compatible with side rails, must be flat rack; not compatible with load bars or baskets; If platform is mounted to a fiberglass shell/topper/camper, we recommend the shell be the HD/reinforced version
1.25” Round Tube (Gobi Stealth): Installs without drilling; all hardware included; not compatible with rear light mount brackets (see below); ladders must be on the opposite side of vehicle from awning; not compatible with load bars or baskets; If platform is mounted to a fiberglass shell/topper/camper, we recommend the shell be the HD/reinforced version
1.25” Round Tube (Gobi Stealth with rear light mount brackets): Installs without drilling; all hardware included; ladders must be on the opposite side of vehicle from awning; not compatible with load bars or baskets; If platform is mounted to a fiberglass shell/topper/camper, we recommend the shell be the HD/reinforced version

***Our mounting kits make our awning’s incredible strength possible. For this reason, we only ship awnings with our mounting kits designed specific to each application. Installing the awning without using our mounting brackets will void the warranty unless approved by Kinsmen via email. If you have a special application, please email us to discuss.
